Rotary Damper: 18D WDN CW
Technical Specifications
- Model: 18D WDN CW
- Material: Nylon
- Torque Range: 25±5KGF.CM
- Rotation Direction: Clockwise (CW)

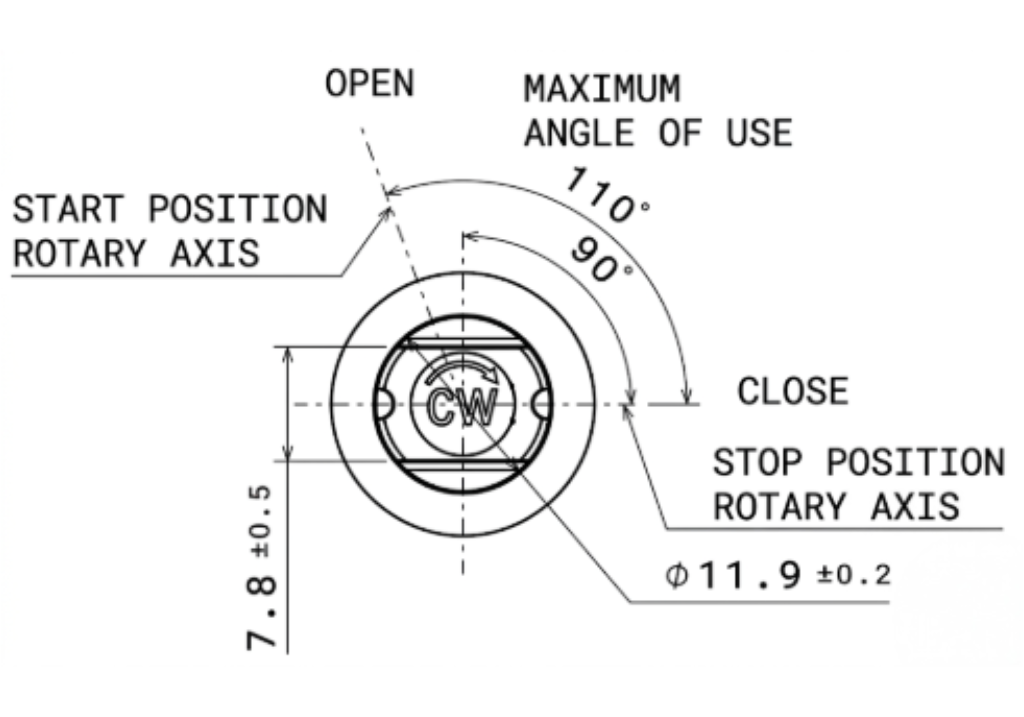

- Operational Angle: 110 degree
- Customized Torque: Not Available
- Speed Characteristics: Torque value ∝ Rotational speed
- Temprature Characteristics: Torque value ∝ 1 / Ambient temprature
Parameters
- Material: Nylon
- Maximum Angle: 110 degree
- Operating Temprature: -5℃ to 50℃
- Damping Fluid: Viscous Fluid
Notes
- Product is qualified upto 30000 cycles in free fall pattern. First open the seat up to dampers full angle capacity than make if free fall from 70° to 0°. The falling time after the test must be more than 2.2s, and there is no damage or oil leakage.

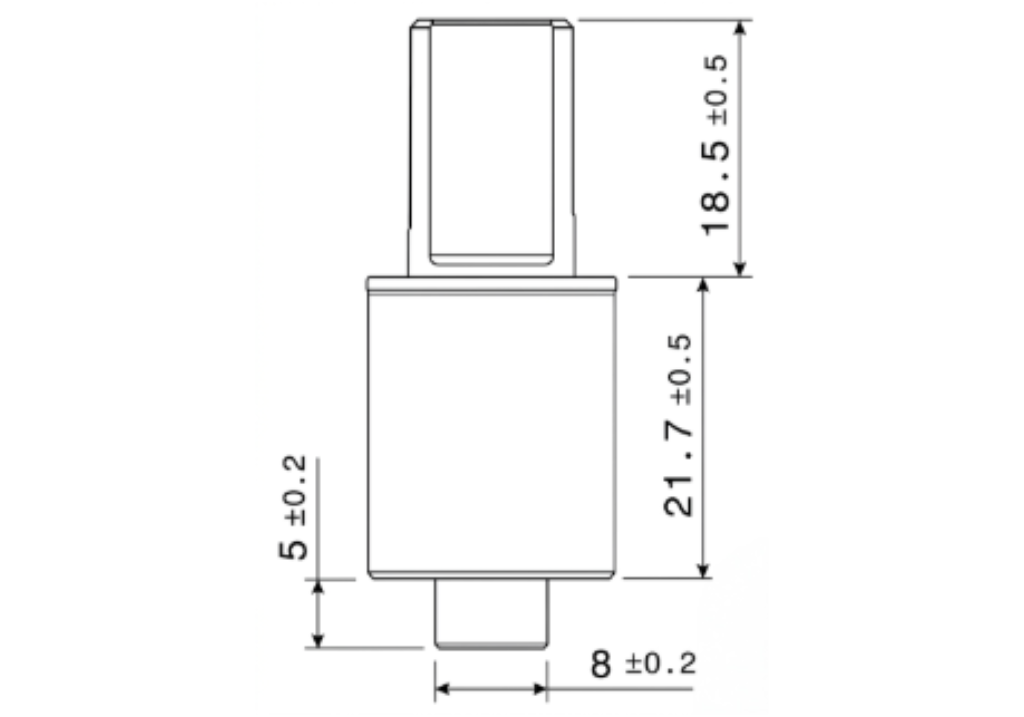

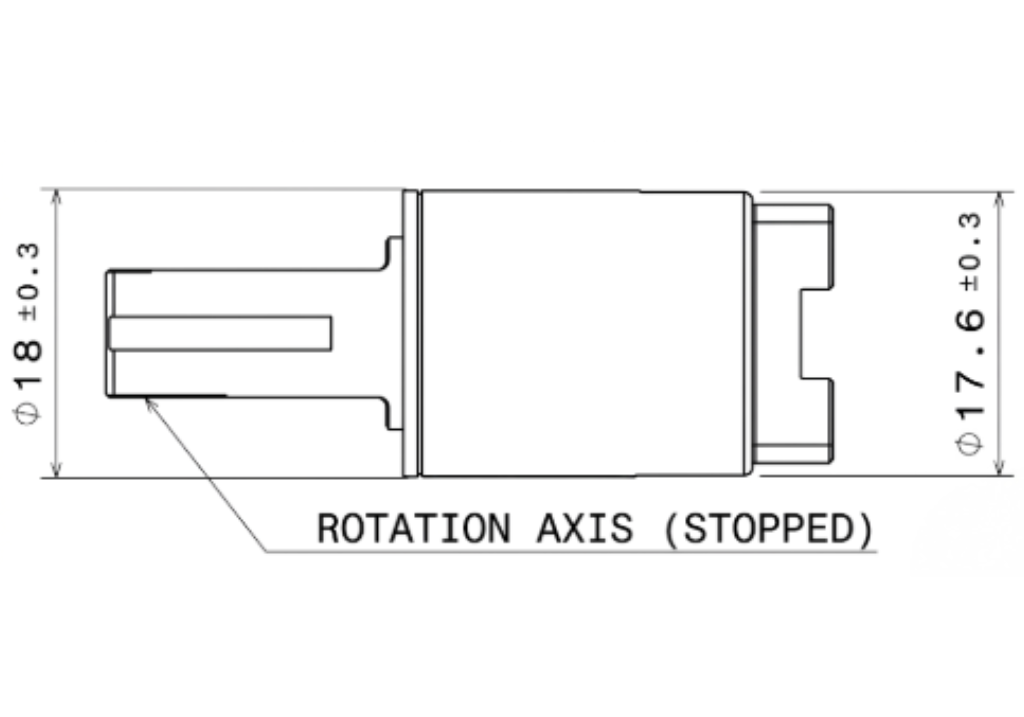

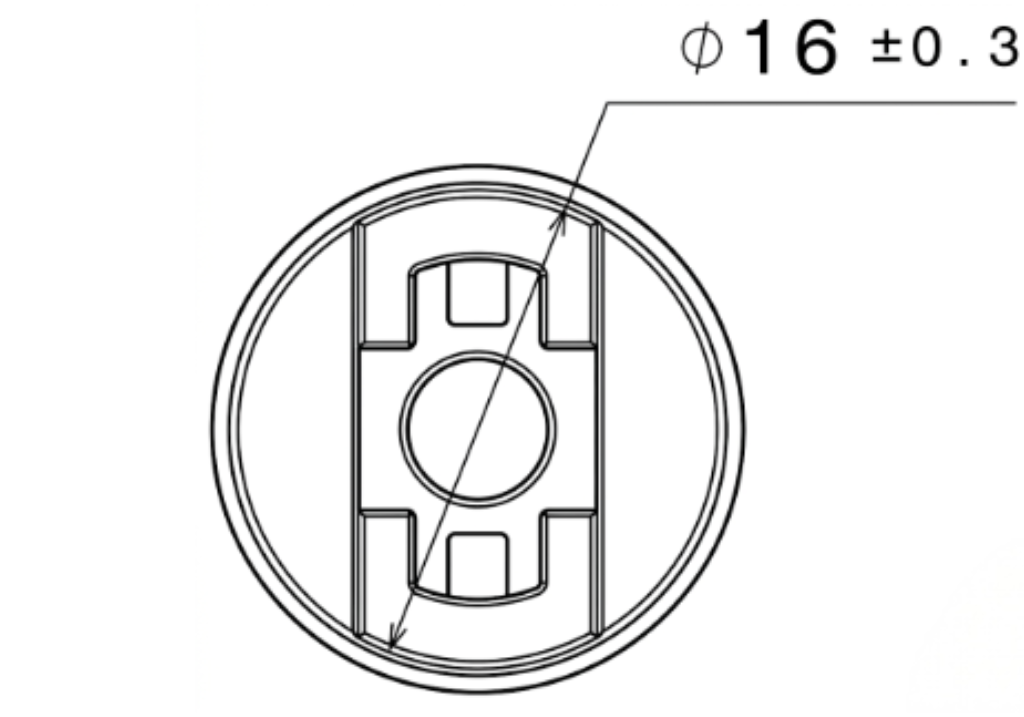

- Dimensions indicated in this drawing may vary in little with actual component.
- Users are advised to verify the actual size of component.
- Part Colour can be changed by Manufacturer. It is coming under Manufacturer scope.
