Speed Characteristics: Torque value ∝ Rotational speed
Temprature Characteristics: Torque value ∝ 1 / Ambient temprature
Parameters
Material: POM
Maximum Angle: 110 degree
Operating Temprature: -5℃ to 50℃
Damping Fluid: Viscous Fluid
Technical Diagrams

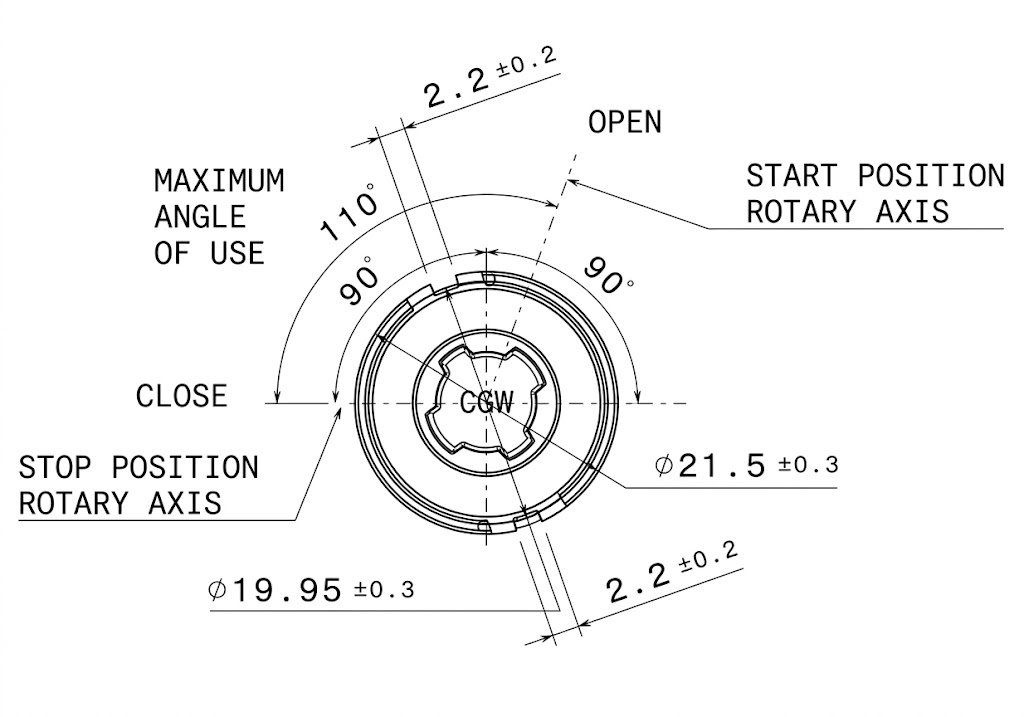

Opening – Closing Angles

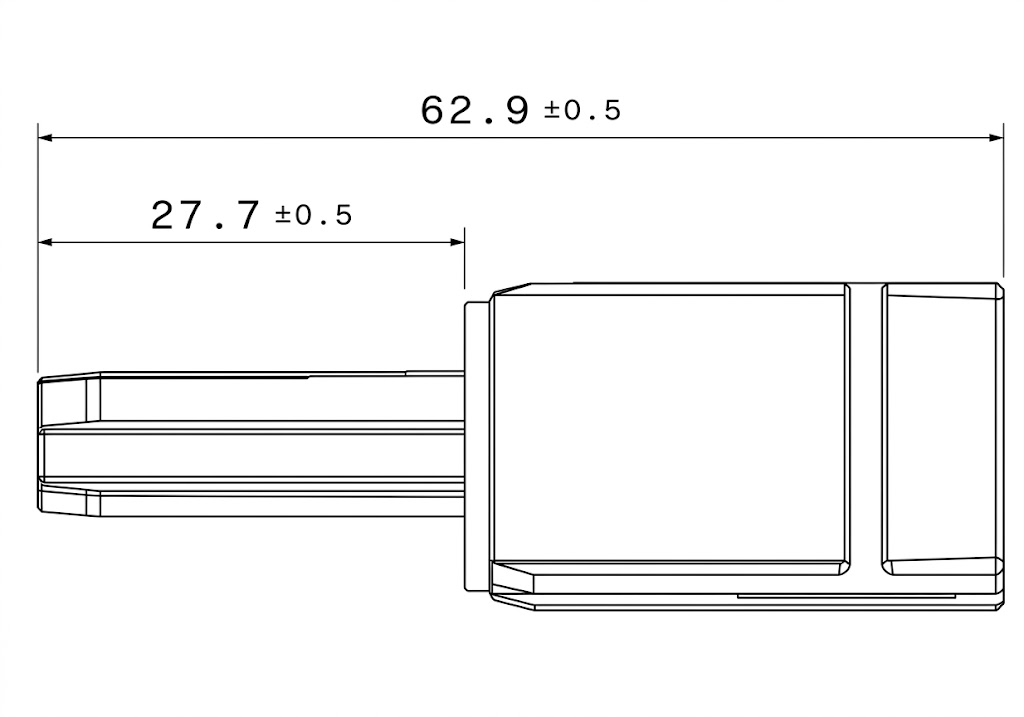

Rotation Axis (Stopped)
Notes
Product is qualified upto 30000 cycles in free fall pattern. First open the seat up to dampers full angle capacity than make if free fall from 70° to 0°. The falling time after the test must be more than 2.2s, and there is no damage or oil leakage.
Dimensions indicated in this drawing may vary in little with actual component.
Users are advised to verify the actual size of component.
Part Colour can be changed by Manufacturer. It is coming under Manufacturer scope.
